BIOPTRON Pro 1

PAG-990

BIOPTRON PRO 1 FEATURES

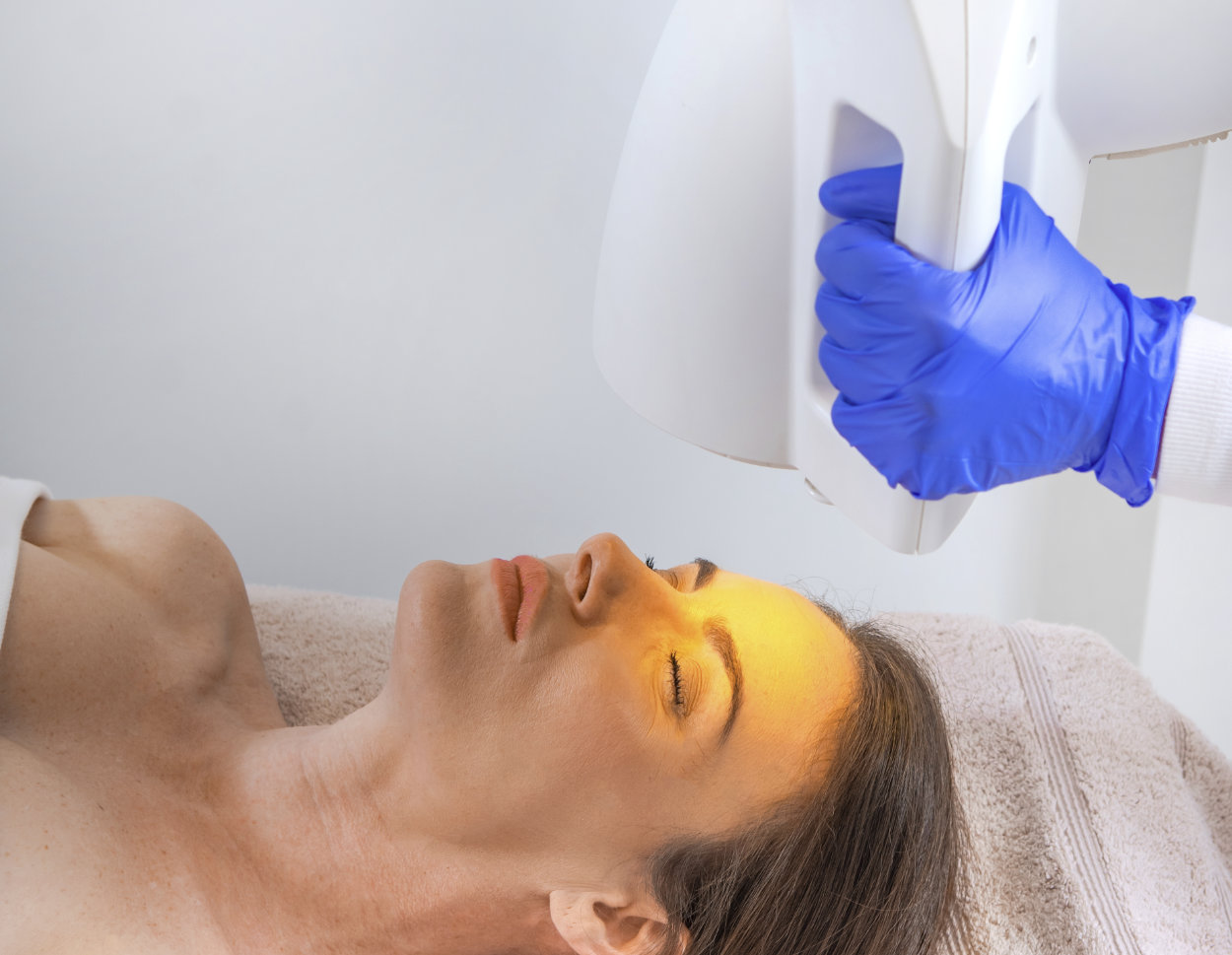

The BIOPTRON Pro 1 Light Therapy device is designed for use at home, in hospitals and therapeutic centres.

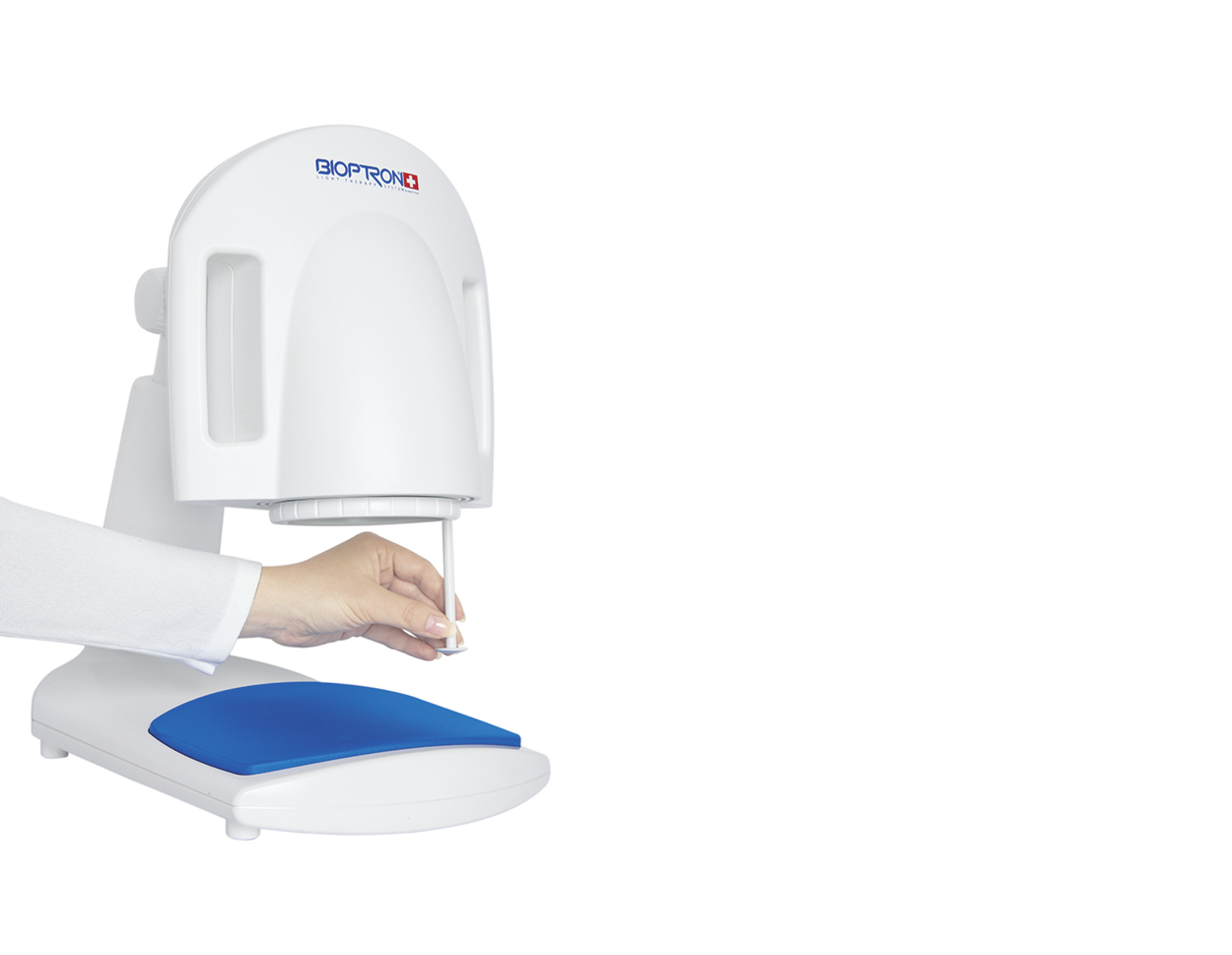

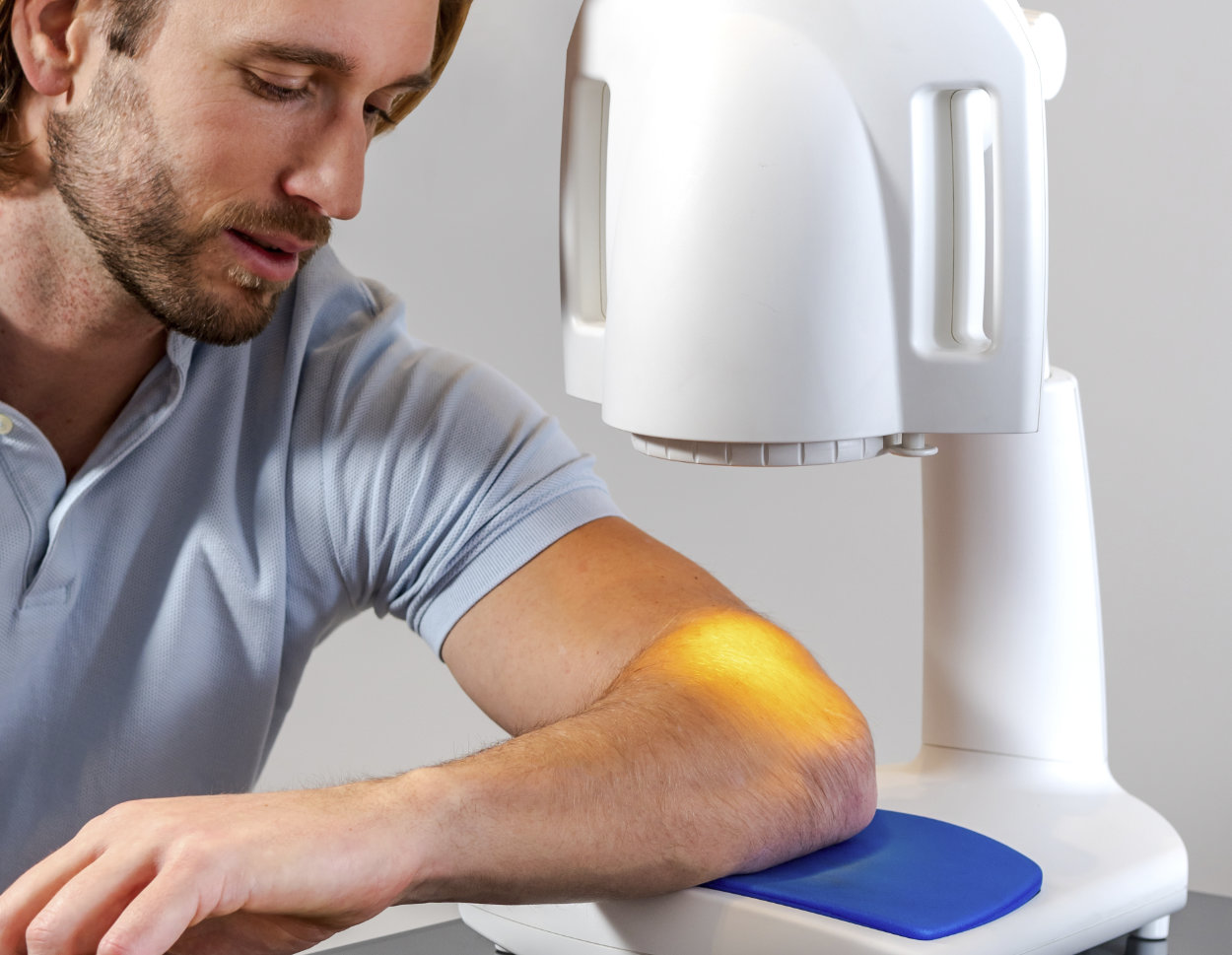

The device is available with an ergonomic table stand that can be combined with a functional floor stand, allowing flexible use in domestic and professional environments. Easily adjustable height and head inclination as well as the ability to rotate the device head up to 360° allow a convenient usage in nearly any position. Treatments can easily be timed by a control panel down to 30 seconds. An integrated distance rod ensures the recommended distance from the skin surface. The table stand is additionally equipped with a dust cover and a comfortable supportive mat (disinfectable, exchangeable and washable).

The filter diameter of BIOPTRON Pro 1 (approx. 11 cm) allows the treatment of small as well as bigger areas. With the sleep mode function, you can keep your BIOPTRON device always ready for treatment with almost no energy consumption (0.5W in standby mode).

FAST, EASY TO USE AND SAFE

Request a presentation

TECHNICAL DATA

Application

BIOPTRON improves microcirculation • Reinforces the body’s defense system • Stimulates regenerative and reparative processes • Promote wound healing • Relieve pain or decrease its intensity - these basic mechanisms are responsible for the therapeutic healing effects as a complementary treatment of the following medical conditions: pain, wounds, dermatology, pediatrics, SAD

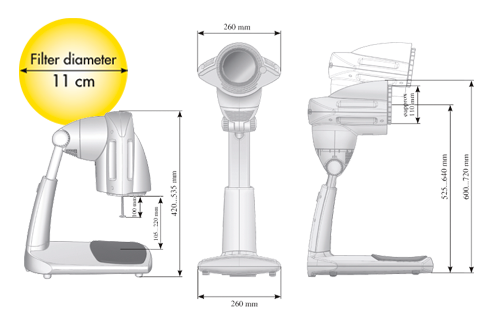

Dimensions

40 x 30 x 49 cm

Medical Device Classification

IIa

Wavelength

350 - 3400 nm

Degree of polarization

>95%

Filter/glass diameter

approx. 11cm

Specific power density

av. 40 mW/cm²

Light energy per minute

av. 2.4 J/cm²

Light Intensity

min. 10.000 lux

CE labeling

CE0197

Weight without stand

3.4 kg

Weight with stand

7.8 kg

Energy consumption in sleep mode

0.5 W

Power Supply

100-240 V~ 50/60 Hz

Power consumption

90 VA

Rated Power consumption

75 W

Rated power of halogen

50 W

Power cord

detachable (3m)

Producer

BIOPTRON AG - Sihleggstrasse 23, CH-8832 Wollerau - Switzerland

Made in

Switzerland

Composition

BIOPTRON PRO1 device with basic filter * Table stand * Power cord (detachable) * blind fold for newborns * Protective cover * Protective bag * Oxy Sterile Spray voucher * User manual * Warranty

Display

Yes digital

Warranty

5 years

Certifications/Declaration

EC Certificate, MDSAP, 510(k)

Accessories for Bioptron Pro 1

BIOPTRON Pro 1 ACCESSORIES

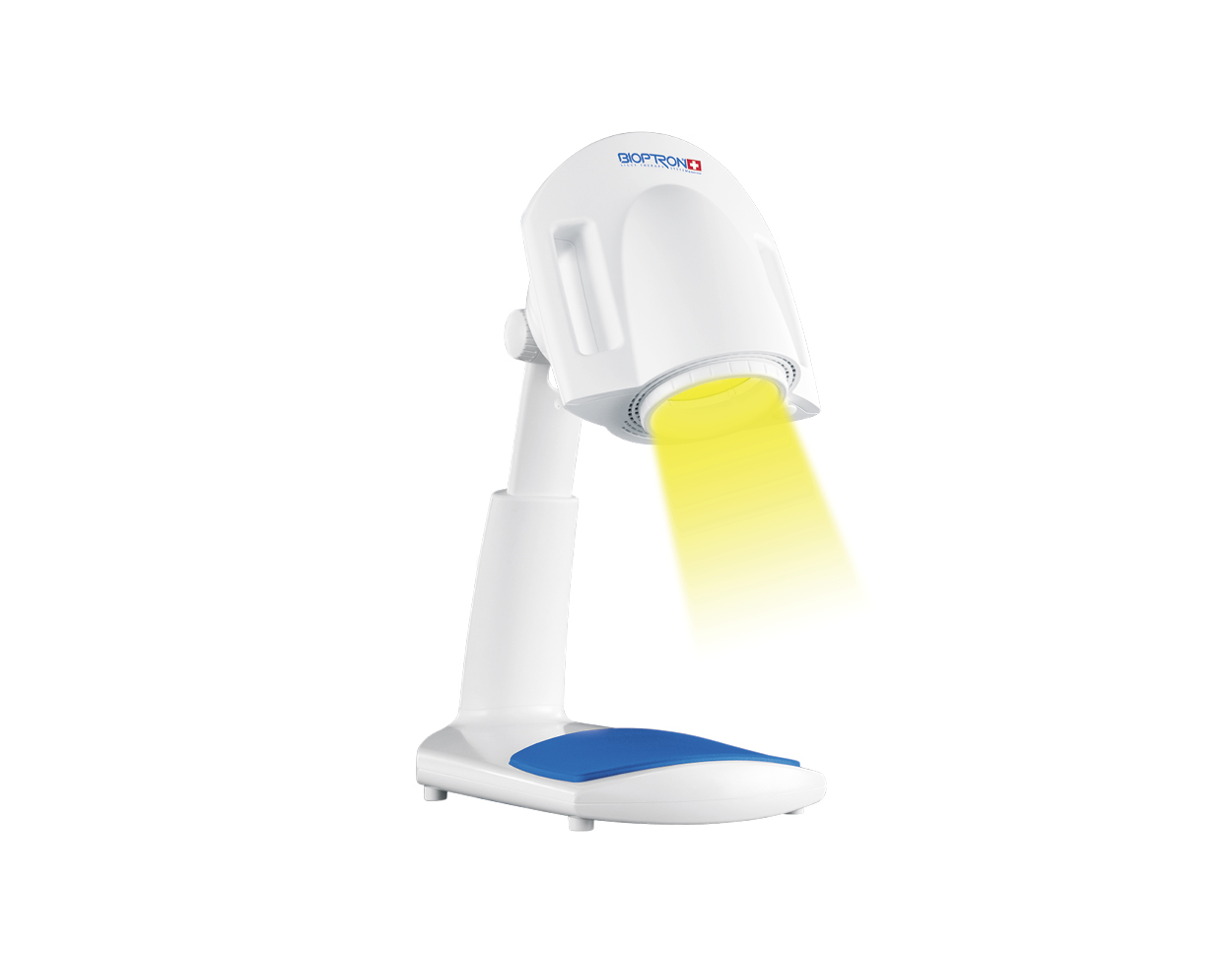

BIOPTRON Pro 1 with Table Stand (code: PAG-990)

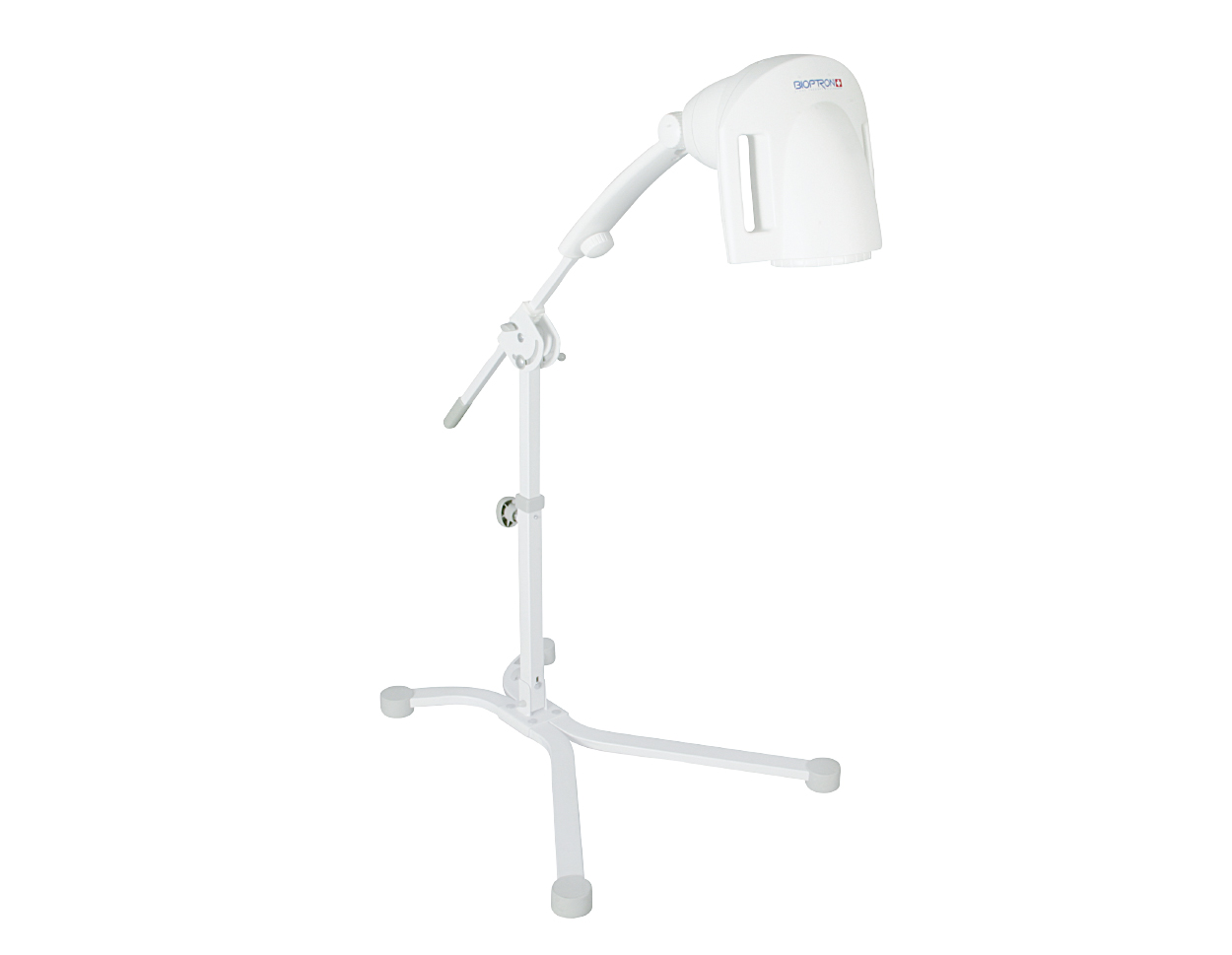

BIOPTRON Pro 1 with Floor Stand (code: PAG-991)

For all BIOPTRON devices a floor stand is available which allows optimal positioning and a convenient treatment of the whole body to meet everyone’s needs.

Features

Absolutely safe
Easy to move
Highly comfortable for a relaxing treatment
Snap-in security system
Flexible as it reaches all body areas
Consumer-friendly assembly and adjustment

HOW TO USE

BIOPTRON Light Therapy is to be performed individually. The duration of each session and of the entire course of the treatment depends primarily on your health problem and on the state of the area to be treated. Depending on the medical condition to be treated, the BIOPTRON Light Therapy treatment will only take a few minutes once or twice a day. BIOPTRON should be used when you have time to relax and can enjoy the biostimulative effects of the therapy.

All you need to do is follow these simple steps:
